NEX1200
NEX1200

NEX1200

Programmable Temperature and Humidity Controller

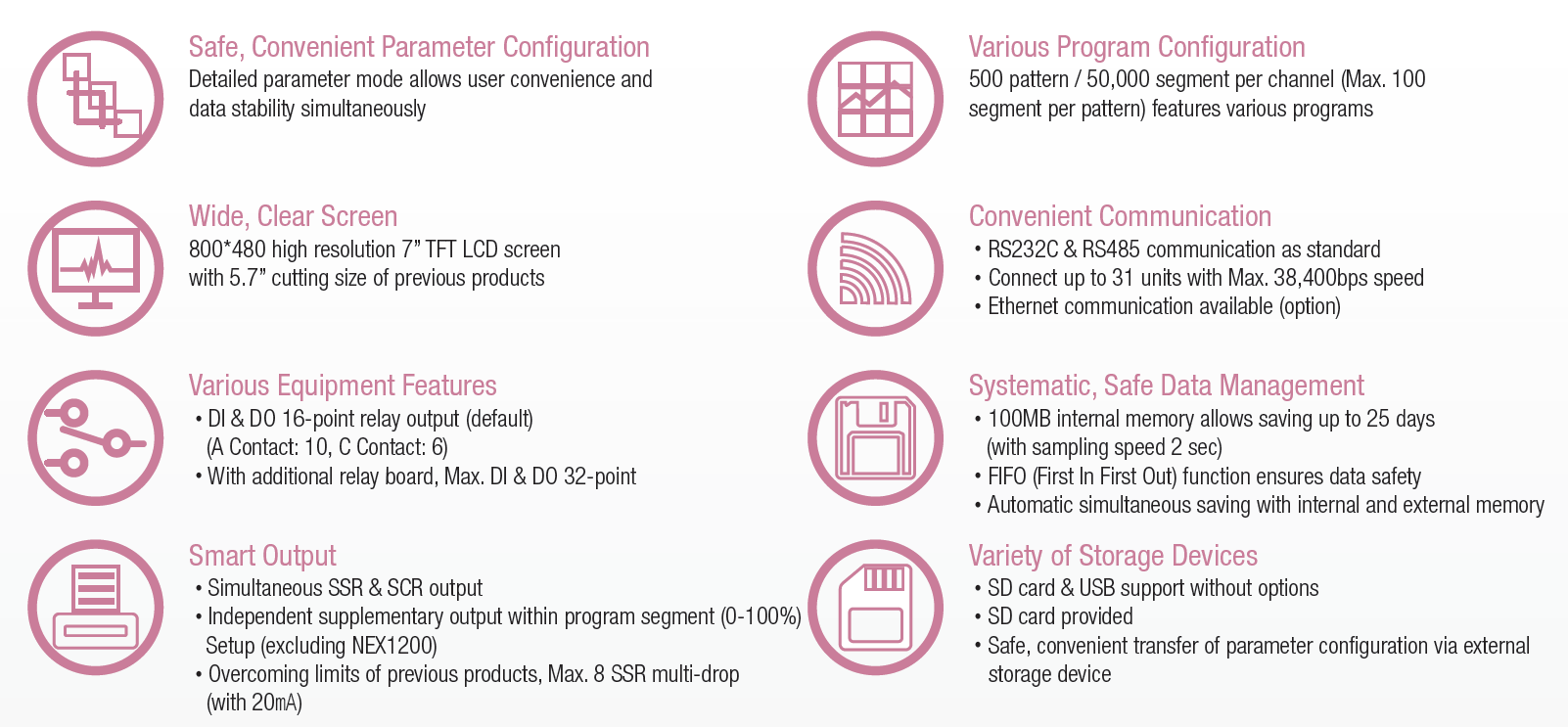

Configuring a variety of programs
  • 500 patterns per channel / 50,000 segments
Wide, Clear Screen
  • 800*480 High Resolution 7" TFT LCD Screen
Organized and secure data management
  • Secure data with First In First Out (FIFO) functionality
  • Save to internal and external memory simultaneously
Smart Output
  • Simultaneous use of SSR, SCR outputs
A variety of storage devices
  • Overcoming limitations of existing products, up to 8 SSR multi-drops (20mA standard)
  • SD card, USB default with no additional options
  • SD card 8G offered, can be extended to 16G
※ Recommended current consumption = 1A (Controller + I/O board)

Catalog Catalog_kor
Instruction Manual Instruction Manual
Communication Manual Communication Manual
Software Software
